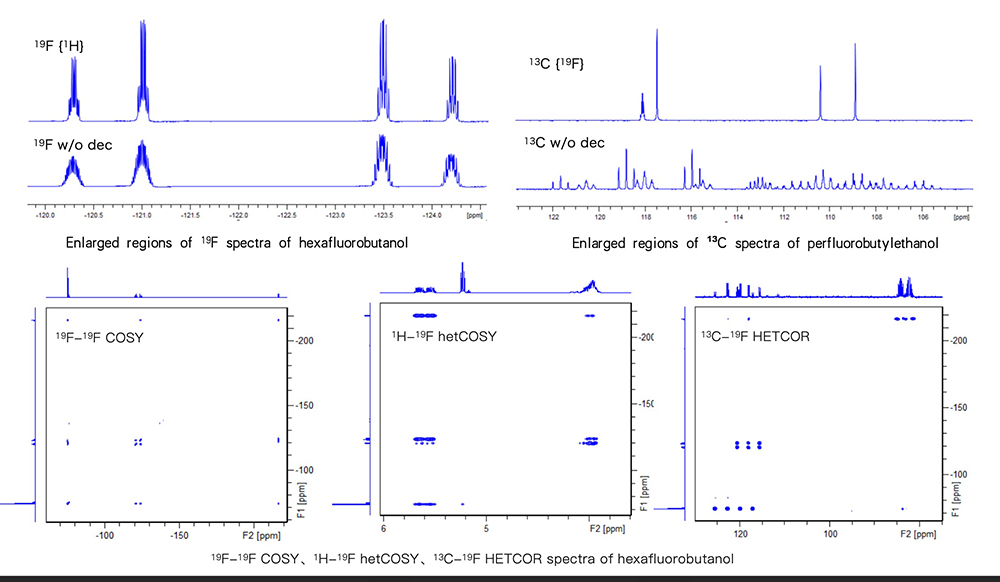

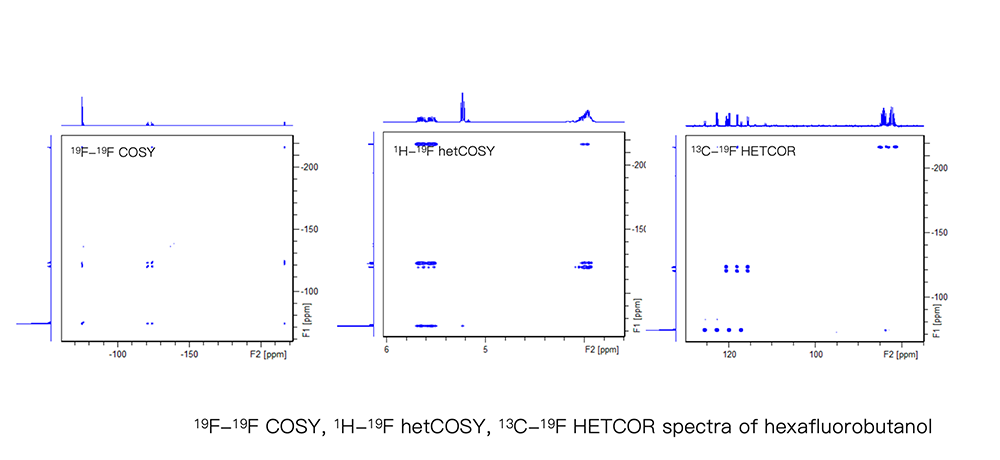

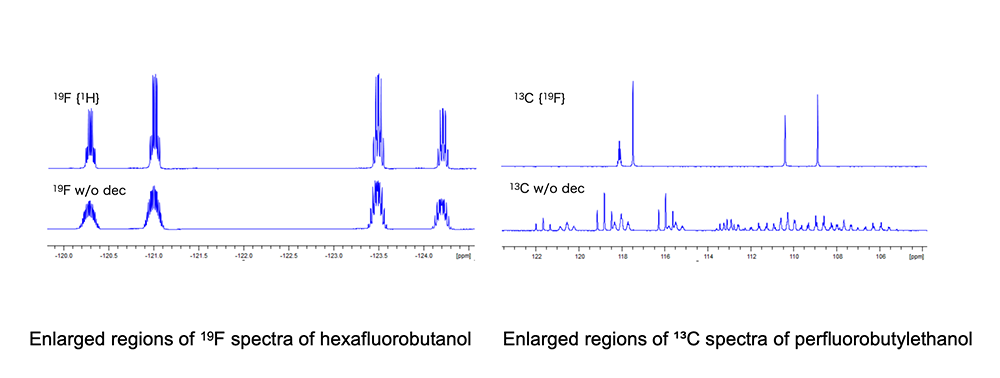

A key feature of this probe is that both the H-channel and X-channel support 19F nuclei. Minimized coupling and enhanced isolation between coils enable a wide range of 19F experiments, such as 19F observation with ¹H decoupling, ¹³C observation with 19F decoupling, and 2D ¹H-19F or 19F-13C correlation experiments.

The probe delivers excellent ¹H line shape. For experiments requiring solvent suppression, presaturation with PFG yields excellent ¹H spectra with high resolution.

• STM technology, enabling high-precision and rapid automatic tuning/matching

• Broadband range: ³¹P - ¹⁵N, expandable to ¹⁰⁹Ag

• ¹H channel can be tuned to ¹⁹F

• Wide VT range

• Z -direction  pulsed-field gradient

• Compatible with other systems
